Universal Turbo 38mm External Wastegate Bypass Exhaust+ Flanges+Spring 17PSI 20PSI OZAG

Universal Turbo 38mm External Wastegate Bypass Exhaust+ Flanges+Spring 17PSI 20PSI



Features:

The V-Band flanges make installation pain free, the three lower & two upper air ports make connecting pressure sources and boost controllers easy.

Stainless Steel actuator spring gives consistent pressure at high temperature, resist “relaxing” at temperature to 900F (483C).

Ultra compact design fits in very tight spaces, the unit stands only 3.8″ tall.

Wastegate provide a means to control the boost pressure of the turbo charged engine. Wastegate work to bypass exhaust flow from the turbine wheel.

Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegate uses boost pressure and spring force to regulate the flow bypassing the turbine.

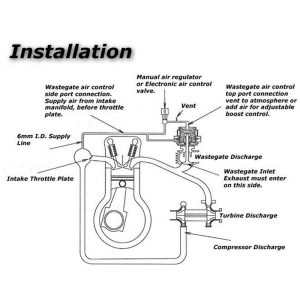

Bolted to exhaust manifold or header, the advantage of Wastegate is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine. This tends to improve the turbine’s performance.



Specifications:

Item Name: 38mm External Wastegate

Material: Aluminium & Stainless Steel

Color: Silver & Black

Size:  7.8cm x 9.6cm / 3.1in x 3.8in



Package Included:

1pcs* Wastegate with Flanges
